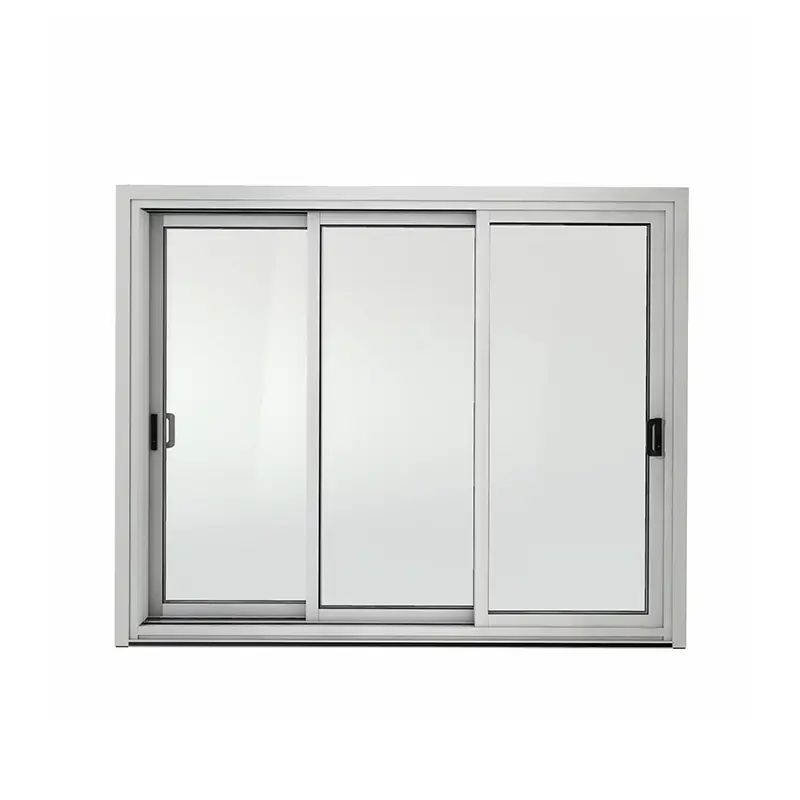

150mm High Performance Triple Track Commercial Sliding Door Aluminum Door Manufacturers, Australia Certificated

Bring the outside in, with secure, elegant and energy efficient thermal-efficient sliding doors.

Thermal-efficient sliding doors.sliding doors minimise heat or cold transfer, and provide excellent energy efficiency.Ideal for commercial and high-end residential applications, you can choose between the heavy-duty bottom rolling stainless steel bearings or Centor top-hung rollers for a lighter, smoother operation.

5.0
Delivery:
25 days upon shop drawing confirmation
MOQ:
10PCS
Payment Term:
TT
Fob Port:
Nansha Port/Shenzhen Port
Trade Term:
EXW/FOB/CIF/DDP
Model Number:
SD100
Product Origin:
Guangdong,China
Brand:
Wangjiawang
design customization
Please fill out the form below to request a quote or to request more information about us. please be as detailed as possible in your message, and we will get back to you as soon as possible with a response. we're ready to start working on your new project, contact us now to get started.

    oops...!

    no product data.

    Go to homepage

    Commercial Thermally Broken Door System


    Bring the outside in, with secure, elegant and energy efficient thermal-efficient sliding doors.

    Thermal-efficient sliding doors.sliding doors minimise heat or cold transfer, and provide excellent energy efficiency.Ideal for commercial and high-end residential applications, you can choose between the heavy-duty bottom rolling stainless steel bearings or Centor top-hung rollers for a lighter, smoother operation.


    Flexible design options allow you to use this great product as a single sliding door or stacking sliding door where wider openings are preferred. It can also be configured as a hinged or pivot door. Complement your sleek new sliding doors and protect your home from creepy-crawlies with the finger light, retractable Centor Eco Screen which retreats into the door frame when not in use.


    WJW commercial sliding door is an update of the Commercial Sliding Door featuring new sill sections for both Double and Triple Track and a number of new sash options that allow for thicker glass, double glazing and an on site glazing option. The major changes include new sill sections with drop in tracks which can easily be replaced if damaged or worn and their unique design covers the unsightly drainage slots in the sills with the added benefit of increased water performance. All existing hollow sills continue to be available for applications where a sub sill is not used.


    Gutter sills in both double and triple track versions are now available for flush sill applications and these incorporate an aluminium, or stainless steel grate to drain surface water.

    A comprehensive range of sash options are now available:

    • Existing SG sashes for 5mm – 10.38mm glass

    • New sashes with 18mm wide pockets to accept glass up to 14mm

    • New DG sashes for 18mm – 25mm IGU's

    • Glazing adaptor and rail for 28mm IGU’s

    • New deep pocket SG sashes for onsite glazing 5mm – 6.76mm wet glazed on site

    • New onsite DG sashes for 18mm, 24mm and 25mm IGU’s wedge glazed using "eco" range of gaskets.


    These new sill and sash options add to a comprehensive list of features and benefits of the WJW commercial High Performance Sliding Door. These include a wide range of interlocks combinations to meet height and wind load requirements, standard lock stiles that accept face fix or mortice locks, wide stile options catering for special locks, highlite and screening options.


    These ongoing developments will ensure that the WJW commercial High Performance Sliding Door remains at the forefront of sliding door design.

    Technical Data

    Frame Dimensions150mm
    Alum. Thickness2.0-2.2mm
    Glazing details/Single Glazed 5 - 13.52mm
    Glazing details/Double Glazed18 - 28mm
    Maximum Product PerformanceSLS/ULS/WATER AS BELOW
    SLS(Serviceability limit state) Pa2500
    ULS(Ultimate limit state) Pa4500
    Water300
    Maximum Recommended SizesHeight 2950mm /Width 2000mm /Weight 200kg per panel
    Thermal PerformanceUw range SG 2.3 - 5.1
    SHGC range SG 0.28 - 0.66
    Uw range DG 2.3 - 5.1
    SHGC range DG 0.14 - 0.59
    Main hardware can Choose Kinlong or Doric , 15 years of warranty
    Weather resistant sealantGuibao/Baiyun/or equivalent brand
    Structural sealantGuibao/Baiyun/or equivalent brand
    Outer frame sealEPDM
    Glass glue cushionSilicon

    High Performance Sliding Door

    The door allows architects and designers the freedom to achieve large expansive openings without the need to compromise on performance or aesthetics.


    Specifying WJW’s commercial sliding door range ensures the client receives a solid, durable,high performance product. WJW’s commercial sliding door range is the first choice amongst architects,builders, homeowners and fabricators when performance and quality matter.

    Key Features

    • High water performance sill options

    • Large sliding panels, ideal for housing,apartment and commercial applications

    • Inside or outside sliding panels, allowing multiple panel designs

    • Allows up to 4 panels stacking in each direction

    • Heavy duty interlocks for high wind load requirements

    • Accepts up to 13.52mm single glazed and up to 28mm double glazing units, allowing the designer to achieve the most demanding thermal and acoustic specifications

    • 90 degree post free corner option

    • Heavy duty rollers up to 200kg per panel

    • Bevelled rail options

    FAQ

    1Q: What does thermally broken doors mean?

    A: A thermal break is a barrier or “break” in a window or door frame. Thermally broken door systems are used whenever there is a difference between indoor and outdoor temperatures. Metal is an excellent conductor of heat and cold, meaning that you can lose a great deal of heat through a door frame.

    2Q: Are aluminium doors thermally efficient?

    A: Whilst aluminium boasts several positives it does come with a downfall, it's a highly conductive material. As a result, aluminium doors and windows are prone to losing heat, easily get cold and increase problems with condensation. Making aluminium a less suitable material choice for residential homes.

    3Q: What does thermally broken aluminium mean?

    A: Thermally Broken Aluminium Framing:

    A Thermally Broken Frame is one which features a reinforced polyamide strip (a non metallic, composite, structural, material) fixed between the inside and outside aluminium profiles, creating an insulated barrier within the window frame.

    4Q: Where should I consider aluminium sliding patio doors or aluminium sliding door?

    A: We think that the size of your structural opening is one of the deciding factors in choosing a sliding patio door. While both bifolding and sliding doors will let masses of light and air into your home, sliding patio doors give you large glass walls, a picture frame effect in your home. A sliding door will also have far fewer vertical mullions when closed, giving you bigger glass panels.

    Our advice is that if you are fortunate enough to have a large opening of four metres or more, a sliding door is perfect, giving you slim, sightlines and fantastic views.

    Even if you think you want a bifolding door, we can help, but do come and see sliding doors too. You may be surprised in finding they are right for your home.

    5Q: Do aluminium sliding patio doors have good U-Values?

    A: A U-Value is the measure of the thermal performance of a sliding door giving you the expected heat loss from the inside of your home. The lower the U-Value, the better performing the door.

    All our aluminium window and door products offer thermally insulated frames. However, because aluminium sliding patio doors use so much more glass, you also get much-improved U-values and excellent energy efficiency in your home. Contact us and we can explain how a sliding door can offer better U-Values than you might think because it uses less frame and much more glass.

    6Q: Are aluminium sliding patio doors practical to use?

    A: If you like to ventilate your home frequently, then a sliding door can be as efficient as a window or a hinged door. Sliding doors offer more controlled ventilation than bifolding doors because you do not need to fold the door set partially. A sliding door panel can be slid open as much or as little as you like.

    In day-to-day use, sliding doors are also practical. All our products use the latest generation of components, rollers and running gear, giving you effortless operation whatever the size or weight of the door.

    Sliding doors enable you to open the doors partially which is ideal for the cooler days or evenings without making your home cold. This can be more practical than a bifolding door that will often need at least one panel fully opened.

    7Q: Are sliding doors better for views?

    A: A two panel sliding door has just one vertical mullion. A three panel door has just two. These vertical mullions are slimmer than other types of doors, giving you more glass, less aluminium and altogether better views. Bifolding doors give you thicker sight lines because of how they meet together, slide and fold. Sliding doors do not.

    If you live in the countryside or enjoy fantastic views from your home, we think you will enjoy these more with a sliding door.

    8Q: Are sliding doors better for opening up to the garden?

    A: When it comes to a full clear opening, a sliding door will not give you as wide an opening as a bifolding door, but they take up less space inside or out.

    Folding doors need space inside your house or outside on your patio to stack and fold together. The more door panels, the thicker the stack and loss of space. Sliding doors slide within their existing space making them ideal for small patio areas or balconies.

    Sliding patio doors slide along their track giving you a more streamlined appearance whether open or closed. Your decision is based on how you will use your sliding doors. With the British weather meaning our doors are closed most of the year, you may prefer the great views and large glass all year round rather than a full opening a few days at a time.

    9Q: Is a flush floor possible with sliding patio doors?

    A: Yes. We work with you or your builder to ensure the installation of your new sliding doors gives you as low a threshold as possible. Both sliding and bifolding doors will give you a low threshold. We frequently install doors separating a conservatory and the main house with sliding doors to great effect.

    A sliding door utilises a different track arrangement to folding doors meaning you can still have them set low and have excellent weather resistance as well. Contact us, and we can demonstrate how this works.
